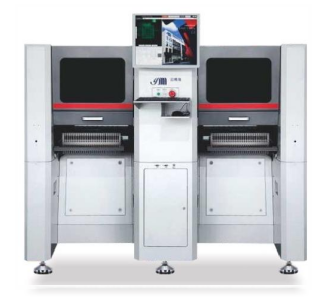

Number of mounting heads: 8 sets of high precision mounting heads

Control host: Intel high-performance processor industrial control host

IC tray number: 96 track adjustment mode electric automatic width adjustment

Number of feeders: 102/87 (based on 8mm Feida)

Nozzle buffer range: 4.5mm

Positioning accuracy: 0.01mm

Z-axis maximum stroke: 50mm

Repeated mounting accuracy: 0.05mm

Component Angle support: ±180°

Resistance-capacitance patch speed range: 22000-27000Pcs/h

Drive motor: AC servo motor

Range of mounting components: resistance and capacitance, chip, lamp bead 0201-35*35mm, etc

Driver system: high-speed DSP driver

PCB mounting area: 50*50mm-340*370mm

Air source requirements: oil-water separation device, not less than 50L, dust filtration and pressure stabilization device.

Feeder: Support NXT electric flyby, vibration flyby, IC tray, etc

Nozzle vacuum source: Vacuum generator (controlled vacuum destruction)

Identification equipment: 2 MARK cameras, 8 high speed identification cameras, 1 high precision camera

Vacuum mechanism: vacuum pump plus high frequency vacuum destruction module

Mounting height: ≤20mm

Air source pressure: 0.2-0.4Mpa

Recognition mode: 8 head recognition at the same time

Operating system: Based on windows system, independently developed SMT intelligent operating system

PCB transfer mode: three-stage into the template, from left to right automatic connection, automatic PCB positioning

PCB requirements: Automatic mode requires a 3-5mm process edge

MARK point support: manual/automatic positioning

Visual display: 17 "square screen industrial display

Programming method: Import coordinate file, one-click automatic programming, optimal path planning

Cable: wear-resistant flexible cable (10 million times)

Motion system: Huawei Guochuang intelligent control system 2022 version

Power supply: AC220V 50/60Hz

XY maximum stroke: 423mm*734mm/ single side

Max/average power: 2300/1500W

XY drive track: linear guide + screw drive

Dimensions: 1740*1360*1440mm

XY motion mode: intelligent curve acceleration and deceleration linear linkage, with linear interpolation algorithm

Equipment weight: 1200kg
