Size 45mm*45mm internal component identification and mounting.
2. Fast speed The fastest mounting machine speed 15000pcs/ hour IPC985 standard average mounting speed 10000pcs/ hour
3. Strong stability using Japanese Panasonic servo motor and drive. TBI precision linear guide rail, Japanese vacuum generator. JUKI high precision nozzle, automatic feed integrated system high configuration PC industrial computer, effectively protect the machine
The stability of long time operation processing.
4. High degree of automation the machine is equipped with precision transmission guide rail, automatic entry board, automatic exit board docking station reflow welding, no manual frequent board, manual operation of the machine operation, greatly improve efficiency in the fierce market
In the field of competition, only to improve efficiency and ensure quality is to improve the competitiveness of enterprise products, reduce labor costs, and reduce unnecessary losses.
5. Built-in high efficiency and energy saving vacuum pump, greatly reducing the requirements for air source.
Request A Quote

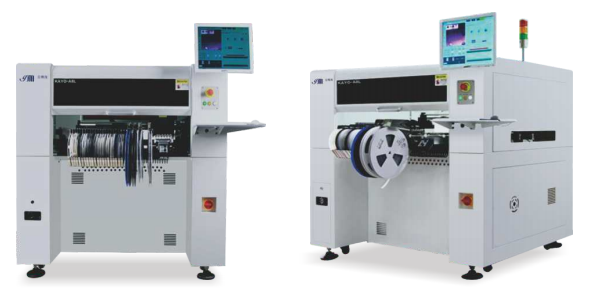

PRODUCT DESCRIPTION
Number of feeders: 70 (front 38 and back 32) Board area 650×380mm
Number of pallets: Support 12 groups of XY movement range 750×670mm
Number of mounting heads: eight heads (no need to change the nozzle) Z-axis moving range 20mm
Positioning accuracy: 0.01mm product weight 800KG
Average power: 750w Dimensions 1500*1280*1410mm
Power supply: 220V,50Hz guide adjustment mode manual + automatic
Nozzle buffer range: 5mm open cover alarm slow down or stop
Drive motor: Japan Panasonic servo motor patch speed 18000Pcs/ hour
Compressed air: 0.5-0.6Mpa motion drive system Panasonic high-speed DSP drive
XYZ drive guide: HIWIN high-precision heavy-duty linear guide XY operation mode intelligent curve acceleration and deceleration straight line
linkage
Belt feeder: 8, 12, 16, 24, 32mm flying, vibration flying
Maximum patch speed: 15000Pcs/ hour (open vision)
Average patch speed: 12000Pcs/ hour (open vision)
XY transmission mode: imported HIWIN high precision ball screw + imported HIWIN heavy duty linear guide rail
Nozzle vacuum source: high-speed on-off vacuum generator with vacuum failure
Operating system: Based on Windows operating system, Kaiyang Technology company independent research and development of automatic SMT machine operating system
Component Angle: 0-360° arbitrary Angle, synchronous rotation in motion
Board entry mode: three-stage board entry from left to right automatic connection (in board waiting board, out board waiting board) automatic PCB transfer positioning
Visual display: 1 industrial control display ratio 4:3 Resolution: 1024×768
Programming method: point-to-point teaching programming, visual programming, PCB file coordinate import, etc
Number of identification cameras: one Mark identification camera, four synchronous high-speed identification cameras, and one 5-megapixel program automatically optimizes the installation and continues production without waiting for resetting
Mount optimization: The program automatically optimizes the completion of mount to continue production without waiting for reset
Automatic connection: can be automatically connected to the front and rear end of the signal equipment
Shortcut button: offline reset automatic operation clear alarm
Applicable mounting range: suitable for 0201, 0402, 0603, 0805, 1206, LED lamp beads, diodes, SOT, QFP, BGA with pin spacing greater than 0.3mm within the range of 45*45mm
