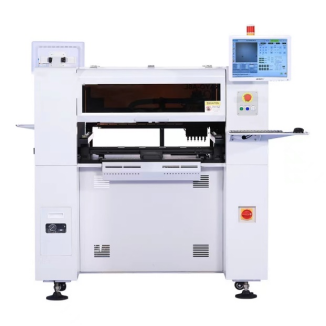

Technical parameter

1 Number of feeders 60 (first 24 after 36)

2 Pallet quantity supports 12 groups

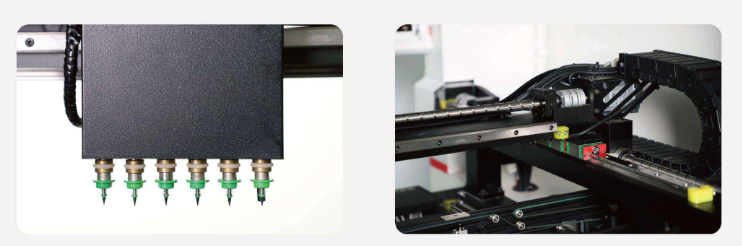

3 Number of mounting heads 6 (no need to change the nozzle)

4 Average power 600W

5 Positioning accuracy 0.01mm

6 The nozzle buffer range is 5mm

7 Power supply 220V, 50Hz

8 Compressed air 0.5-0.6Mpa

9 Drive motor Japanese Panasonic servo motor

10 Maximum board area 650 x 370mm

11 XY Maximum moving range 700×619mm

12 Maximum movement range of Z-axis 20mm

13 Belt feeder 8, 12, 16, 24, 32mm flying, vibrating flying (optional electric flying)

14 Maximum patch speed 10000 Pcs/ hour

15 XY transmission mode imported TBI high precision ball screw + imported TBI heavy duty linear guide

16 Actual mounting resistance and capacitance average mounting speed of about 6000Pcs/ hour (open vision)

17 XYZ Drive guide TBI high-precision heavy-duty linear guide.

18 Motion drive system Panasonic high speed DSP drive

19 Nozzle vacuum source contains a high speed on/off vacuum generator for vacuum destruction

20 Operating system Based on Windows operating system, Yunbohai company independent research and development of automatic SMT machine operating system

21 Component Angle 0-360° arbitrary Angle, synchronous rotation in motion

22 X/Y Running mode Intelligent curve Acceleration and deceleration linear linkage

23 Board entry mode Three-stage board entry from left to right automatic connection (in board waiting board, out board waiting board) automatic PCB transfer positioning

24 Visual display 2 industrial control displays ratio 4:3 resolution 1024x768

25 Programming methods point-to-point teaching programming, visual programming, PCB file coordinate import, etc

26 Cameras 1 Mark recognition camera, 6 synchronous high speed recognition cameras, a 5 megapixel high precision recognition camera.

27 Guide adjustment mode manual + automatic

28 Open the cover to alarm slow down or stop

29 Mount Optimization program automatically optimizes the completion of mount and continues production without waiting for reset

30 Mounting mode Manual semi-automatic automatic

31 Two operations are displayed in the Operation window

32 Automatic connection can automatically connect the front and rear end band signal equipment

33 Shortcut button Offline reset automatic operation clear alarm

34 Suitable for mounting range 0402, 0603, 0805, 1206, LED lamp bead, secondary tube, transistor, SOT, 45*45mm in the range of pin spacing greater than 0.3mm QFP, BGA, etc.

35 Product weight 500KG

36 Overall dimensions 1395*1180*1376mm
