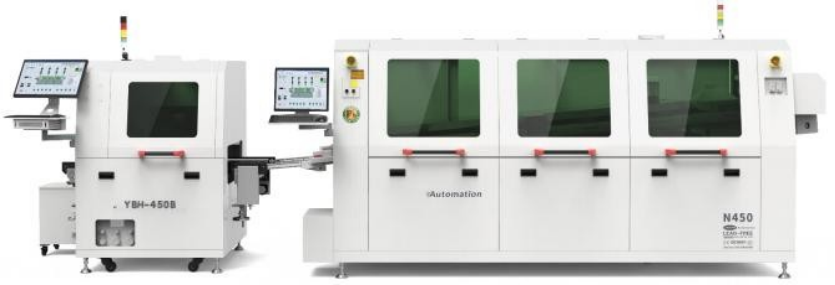

Product Name: Computer-Controlled Lead-Free Hot Air Dual Wave Soldering Machine HN450 Product Description:

1. Detailed description

The entire machine is controlled by Siemens PLC, Yanjing industrial control, and temperature control module, ensuring stability and reliability

·Powerful control software, running on Windows 10 system, with the ability to switch between Chinese and English at any time

·Fully computer-controlled. The computer, PLC, and controller form a stable system

· The total length of the four-stage preheating zone is 2000mm, with upper and lower hot air preheating

·Modular design of the heater, easy to maintain

·Molded curved tooth impeller, patented nozzle design, achieving ultra-low oxidation levels

The inner lining of the tin furnace is made of stainless steel, effectively preventing corrosion from lead-free solder

The Xibo economic operation mode features low oxidation and energy saving

·Fully titanium alloy chain claws, resistant to corrosion and high temperatures, never deforming

The shockwave peak and the width of the compact flat wave are adjustable, saving energy and reducing oxidation

·Dual cooling zone design, utilizing forced cooling by upper and lower fans

·Equipped with heavy-duty titanium alloy double hook claws, and aluminum alloy guide rail anti-deformation structural design

·Manual adjustment of substrate width; adjustable conveyor angle

The transportation speed is controlled by a frequency converter, allowing for stepless speed adjustment

2. Technical parameters of the complete machine:

·Control mode: Computer + Siemens PLC

·Transport motor: 1P AC220V, 250W

·Transport speed: 300-2200mm/min

·Base plate size: 50-450mm (W)

·Entry height: 750±20 mm

·Air source: 5kg/cm² 12Nl/min

·Preheating zone: 2000mm (500 x4, each segment independently temperature-controlled), room temperature to 200℃

·Tin furnace heating: 1.5KW*9PCS, room temperature to 300℃

·Peak height: Approx. 12mm

·Soldering tin furnace capacity: 380KG (lead-free)

·Soldering temperature: room temperature to 300℃ (adjustable)

·Peak motor: 3P AC220V, 0.18KW * 2PCS

·Transportation direction: L→R (R→L optional)

· Power supply: AC380V 50HZ/60HZ

Normal operating power/total power: 10KW/35KW

·Machine body dimensions: 4000(L) ×1550(W) ×1705(H) mm

·Net weight: 1800KG 3. List of components and accessories:

2. Product Name: Flux Sprayer HN450-B Product Description:

1. Detailed description

The entire machine adopts Siemens PLC + touch screen control, ensuring stability and reliability

·Powerful control software, with the ability to switch between Chinese and English at any time

·The spray movement is controlled by a stepper motor and driver, ensuring precise positioning, stability, and reliability

The software comes with a local selective spraying function, which allows for selective spraying of only the circuit board during the production process of carriers, saving over 30% of flux and reducing costs for the company

·Japanese lacquer treasure spray head, with adjustable spray area and atomization depth

·The automatic flux supply system adopts a Japanese SMC diaphragm pump for automatic supply, maintaining a constant pressure of flux

·The perfect flux recovery and ventilation filtration system is beneficial to environmental protection

·Modular design of all components, easy to maintain

·Customized track, hardened treatment, wear-resistant, never deforming

·The chain is automatically cleaned, with deep cleaning by the upper and lower brushes

·Manually adjust the width of the base plate; the conveying angle is adjustable

The transportation speed is controlled by a frequency converter, allowing for stepless speed adjustment

The precision width adjustment screw rod is stable and reliable. The width adjustment system is located outside the machine casing, making it easy for cleaning and maintenance, and preventing flux from sticking

The flux discharge section features a flux anti-drip structure to keep the upper part of the circuit board clean

2. Technical parameters of the complete machine

·Control mode: touch screen + PLC

·Transport motor: 60W

·Transport speed: 300-2200mm/min

·Base plate size: 50-450mm (W)

· Flux capacity: 5L

·Claw washing pump: 6W

·Transportation direction: L→R

Flux pressure: 0.3-0.5 Mpar

· Power supply: AC220V 50HZ/60HZ

Normal operating power/total power: 1.2KW

·Machine body size (including claws): 1500*1250*1555mm

·Net weight: 200KG 3. List of component accessories:

10 Rosin Spray Nozzle Japan Paint Treasure Japan

11 Chain Tsubaki, Japan

12 24V DC power supply Mingwei Taiwan

13 Entry light sensor Jiale Switzerland

14 Pneumatic pump SMC Japan

15 Pressure regulating valve Sonuo China

16 Stepper Motor Reascal China

17 Stepper Driver Reascal China
