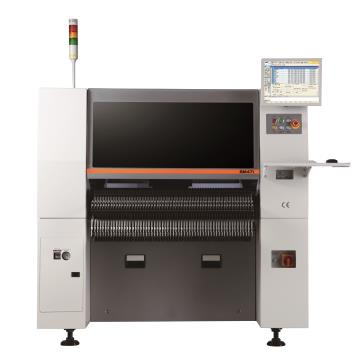

Compared to the existing SM471 model, its placement speed is increased further to 78,000CPH, which is the highest in the world among chip shooters of the same class. In addition, it is basically applicable to components from 0402 (01005inch) chips to maximum □14mm IC components. Its actual productivity and placement quality is improved by applying high-speed and high precision electrical feeders. With two gantries and dual lane, the SM471PLUS supports various production modes to maximize the productivity of SM series machines.
Request A Quote
PRODUCT DESCRIPTION
Dual lane and shuttle conveyor maximizes the productivity of SM series component placers
Dual lane production maximizes the productivity of small boards and the shuttle conveyor ensures extensibility to the production of large boards
Supports for various production modes according to production characteristics
Join Mode Common use of front and rear feeders (less than D 250mm)
Single Mode Production of medium- and large-sized boards (greater than D 250mm)
Twin Mode Separate placement at front and rear sides (less than D 250mm)
Even when a problem occurs to one placement head or when the components in the feeder runs short, another head can help place components, allowing continuous production without stopping the machine
Simultaneous production at the top and bottom
