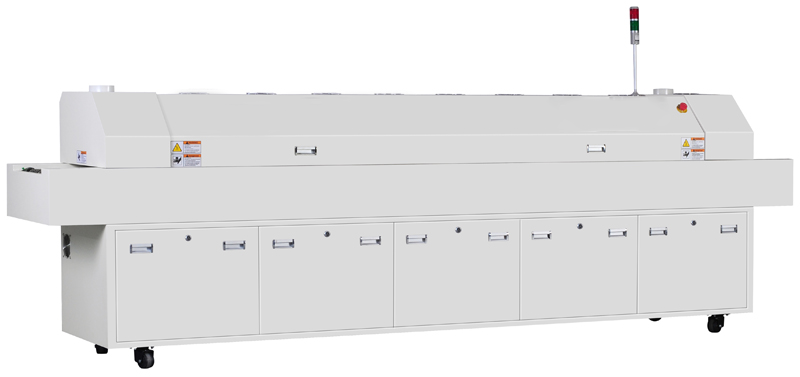

Instrument ten temperature zone lead-free reflow A10
1. The heating system adopts JUGUAR patented heating technology
2. It adopts imported high-current solid-state relay contactless output, which is safe and reliable. It is equipped with a special SSR radiator, which greatly improves the heat dissipation efficiency and effectively extends its practical life.
3. The heating components use imported high-quality components to ensure the high stability and reliability of the entire system, and can also guarantee a longer service life.
4. Combined with the unique PID fuzzy control function of the thermostat, it always monitors the changes in external temperature and calorific value, controls the heating components with minimum pulsation, responds quickly, ensures temperature control accuracy, and the temperature distribution error inside the machine is extremely small. The temperature distribution in the length direction meets the IPC standard.

Request A Quote

PRODUCT DESCRIPTION


ItemSpecification
Heating Zone QuantityUpper 10 / Lower 10
Heating MethodUpper and Lower Hot Air
Cooling QuantityExternal Cold Fan at Outlet
Maximum PCB Width400MM
Transport DirectionLeft → Right
Conveyor Belt Height880 ± 20mm
Transmission MethodMesh Belt
Conveyor Belt Speed300 - 1600mm/min
Power Supply5-Wire 3-Phase 50/60Hz
Starting Power48KW
Normal Working Power6 - 8KW
Heating TimeAbout 25 minutes
Temperature Control RangeRoom Temperature ~ 300℃
Temperature Control MethodTemperature Control Instrument + PID Closed-Loop Control
PCB Board Temperature Distribution Deviation±2℃
Abnormal AlarmTemperature Abnormality
Dimensions5020×800×1355mm
Machine Weight800kg
