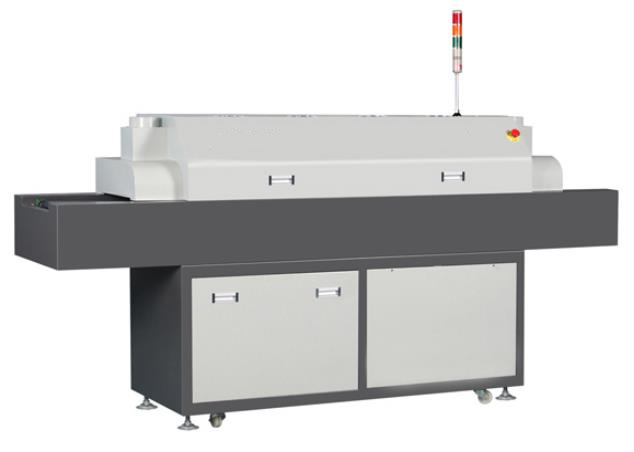

Four temperature zones instrument lead-free hot air reflow oven A4
1. The heating system is unique, advanced and has a long service life.
2. The heating system adopts high-efficiency and energy-saving heating wire and strong hot air circulation structure, so that the PCB and components are heated evenly, with high efficiency and fast heating speed.
3. Through the instrument + PID intelligent operation, the heating is automatically controlled, and the temperature control function can detect temperature changes and control the internal temperature. Modular design, easy to repair and assemble.
4. Adopt imported high-temperature and high-speed motor, stable operation, small vibration and low noise. Efficiency is improved and the service time is extended. The heating system uses imported components.
To ensure the high stability and reliability of all systems

Request A Quote

PRODUCT DESCRIPTION


ModelA4
Number of Heating ZonesUpper 4/Lower 4
Heating MethodUpper Hot Air/Lower Infrared
Width of Mesh Belt400MM
Transport DirectionLeft→Right (or Right→Left)
Height of Transport Belt880±20mm
Transmission MethodMesh Belt
Speed of Transport Belt300 - 1600mm/min
Power Supply5-wire 3-phase 50/60Hz
Starting Power25KW
Normal Working Power4 - 5KW
Heating-up TimeAbout 20 minutes
Temperature Control RangeRoom Temperature~300°C
Temperature Control MethodTemperature Control Instrument
PCB Board Temperature Distribution Deviation±2°C
Abnormal AlarmTemperature Abnormality
 Dimensions2000×900×1350mm
Machine weight300kg
