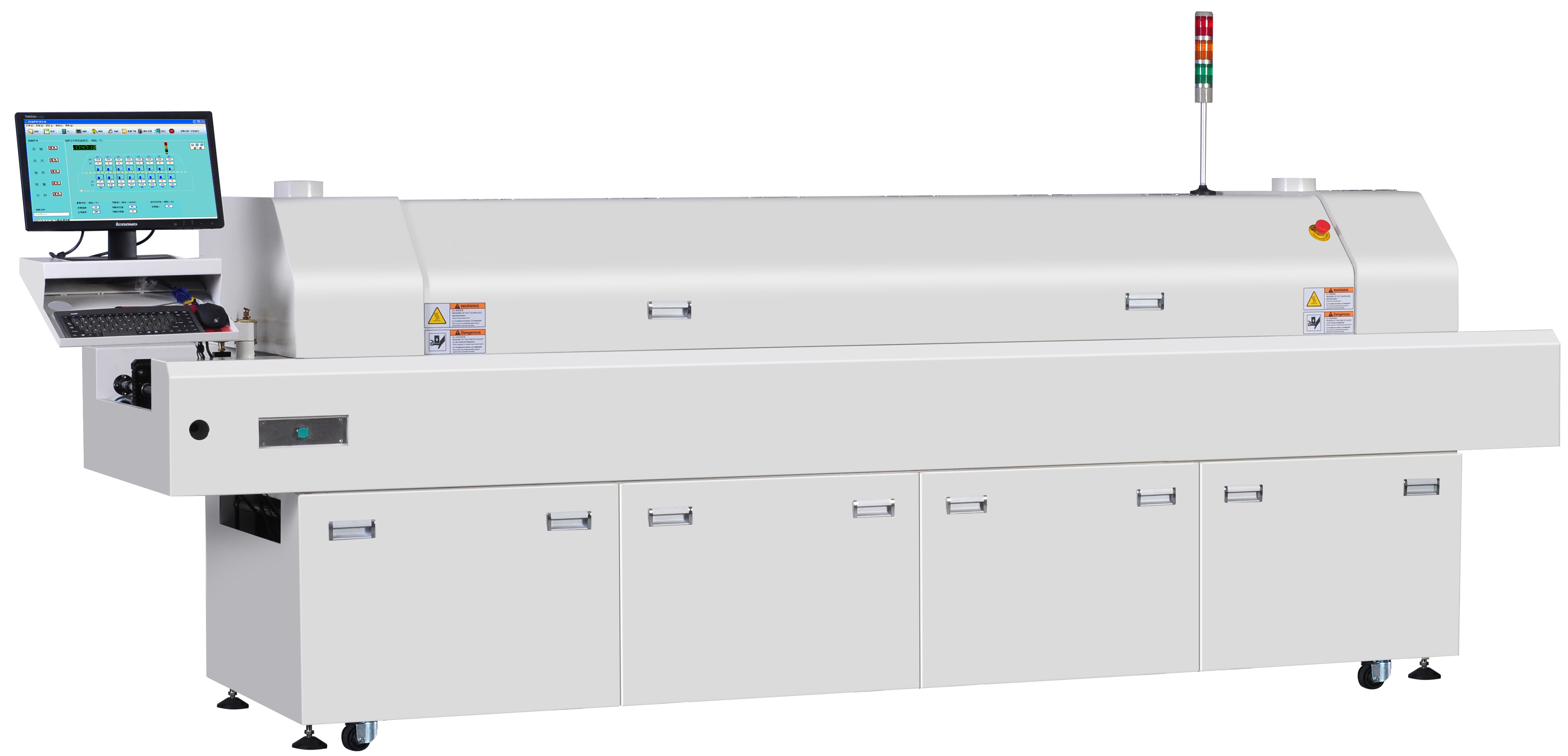

Computer six-zone lead-free reflow A6
1. The heating system adopts JUGUAR patented heating technology
2. It adopts imported high-current solid-state relay contactless output, which is safe and reliable. It is equipped with a special SSR radiator, which greatly improves the heat dissipation efficiency and effectively extends its practical life.
3. The heating components use imported high-quality components to ensure the high stability and reliability of the entire system, and can also guarantee a longer service life.
4. Combined with the unique PID fuzzy control function of the thermostat, it always monitors the changes in external temperature and calorific value, controls the heating components with minimum pulsation, responds quickly, ensures temperature control accuracy, and the temperature distribution error inside the machine is extremely small. The temperature distribution in the length direction meets the IPC standard.

Request A Quote

PRODUCT DESCRIPTION


ModelA4
Number of Heating ZonesUpper 4/Lower 4
Heating ModeUpper Hot Air/Lower Infrared
Mesh Belt Width400MM
Transport DirectionLeft→Right (or Right→Left)
Transport Belt Height880±20mm
Conveying ModeMesh Belt
Transport Belt Speed300 - 1600mm/min
Power Supply5-wire 3-phase 50/60Hz
Starting Power25KW
Normal Working Power4 - 5KW
Heating-up TimeAbout 20 minutes
Temperature Control RangeRoom Temperature~300°C
Temperature Control MethodTemperature Control Instrument
PCB Board Temperature Distribution Deviation±2°C
Abnormal AlarmTemperature Abnormality
